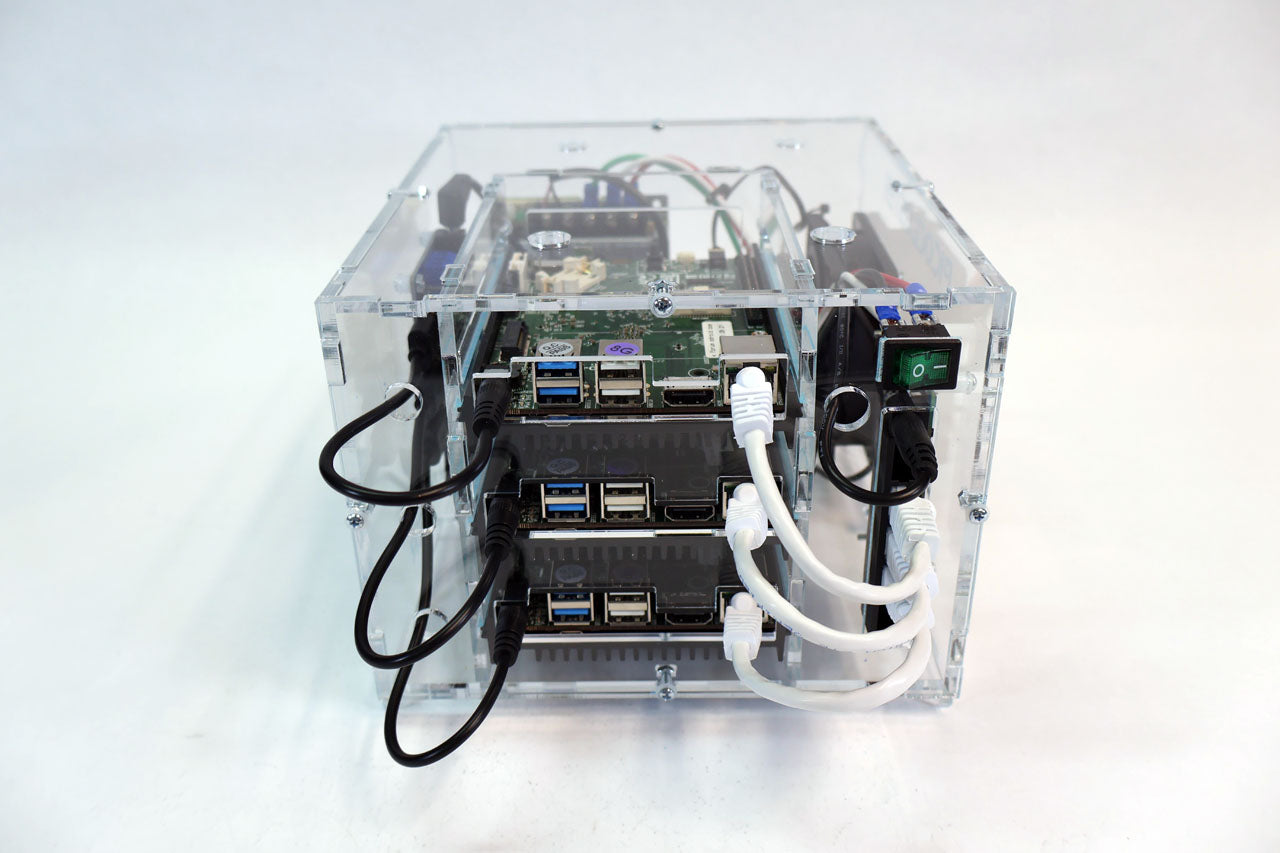

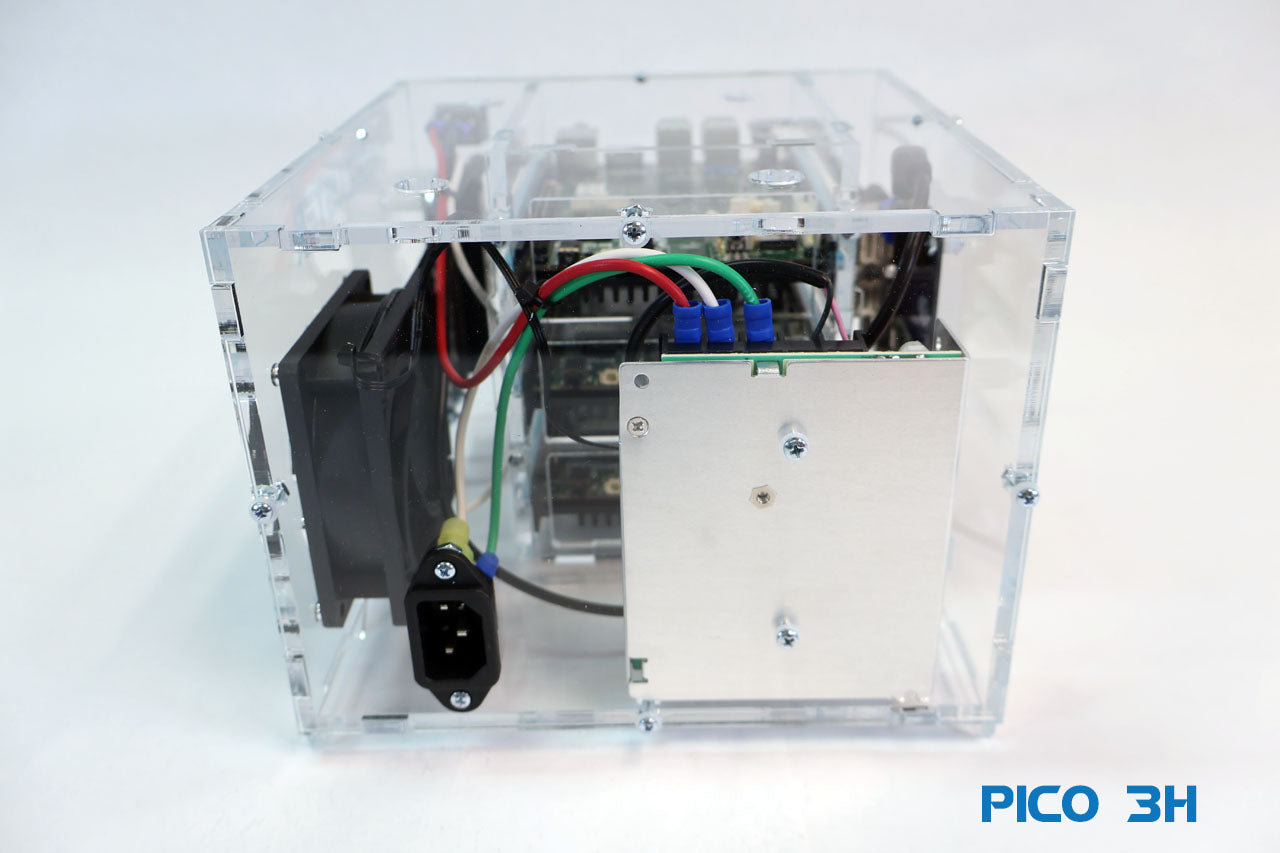

The Pico 3 Odroid M1 Cluster is one of our most popular models! It now comes in multiple flavors to better suit your budget. The Odroid M1 is designed to cluster 3 Odroid M1 boards together to run a variety of software from web servers and database, to Big Data and NoSQL software. One of our most popular uses is with container managers like Docker Swarm or Kubernetes.
The CPU has four ARM Cortex-A55 processors and 8GB of DRAM memory with low power consumption and high efficiency operation at 2Ghz. The CPU and GPU performance is quite similar to our ODROID-C4.
A standard size 22mm x 80mm M.2 NVMe storage device can be directly installed on the ODROID-M1 board. The M.2 connector has PCIe 3.0 2-lane configuration which can deliver a blazing fast 1600MB/sec of sequential access performance. Note that M.2 SATA storage devices can not be used. The M.2 slot supports only a PCIe interface (M-Key).
More information can be found at https://www.hardkernel.com/shop/odroid-m1-with-8gbyte-ram/
The Advanced Kit and Assembled Cube come with the 8GB board. You can use any of the boards in the Starter Kit.
|Switch||5 port gigabit|
See our PicoCluster Buyers Guide for more information.
The memory cards are imaged with the standard PicoCluster Cluster Image Set. The Image set can be upgrade with an Application Image Set like Hadoop, or additional Application Image Sets can be purchase separately.
Contact us at email@example.com for questions.
